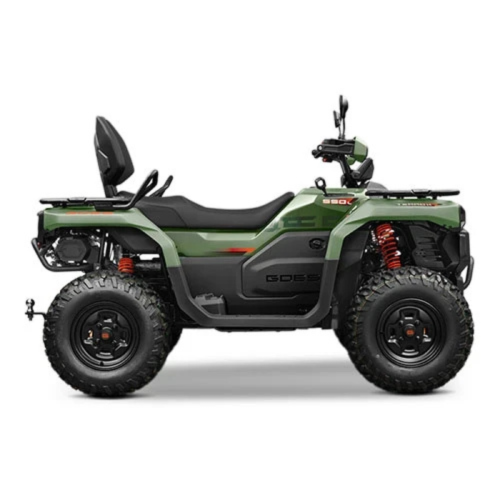

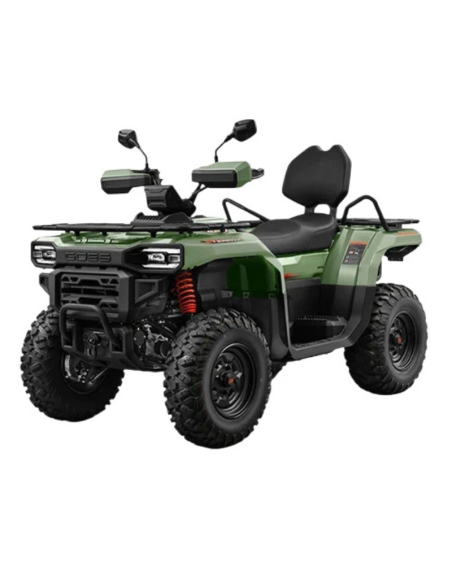

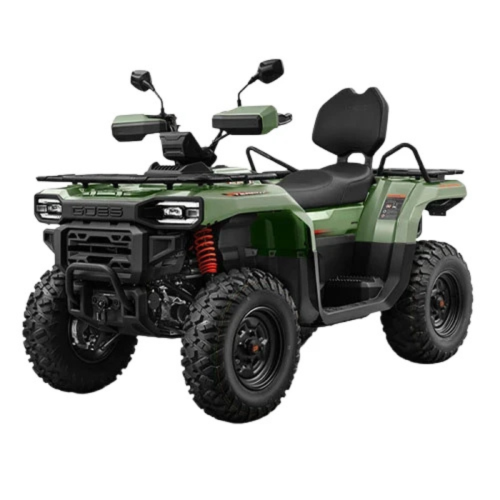

GOES TERROX 550L T3b 2026 – The rugged two-person ATV
The GOES TERROX 550L T3b is a specialized ATV designed as a two-person utility partner, combining solid performance with passenger comfort. With a 499 cc, 39 hp V-Twin engine, this ATV offers the power, stability and endurance needed for demanding tasks and longer trips, whether at work or during off-road adventures.
Design and comfort: The TERROX 550L model benefits from an extended and reinforced chassis, which ensures stability and comfort for both the pilot and the passenger. The ergonomic seats and optimized legroom allow for a comfortable posture even over long distances or during demanding work days. The redesigned right-hand gear shifter offers intuitive control, and the narrow engine configuration maximizes leg comfort.
Towing and loading capacity: GOES TERROX 550L is built to tow up to 700 kg with confidence. Steel bars allow the transport of 40 kg in the front and 80 kg in the rear, the MOLLE quick attachment system ensures flexibility and security for luggage and equipment.
Performance and transmission: The V-Twin, liquid-cooled, four-stroke engine with BOSCH EFI power supply delivers 44 Nm of maximum torque. The CVT transmission with H/L/N/R/P gears makes acceleration and control easy and efficient on any type of terrain.
Suspension and braking: The front suspension is independent, double A-arm type with 200 mm of travel, and the rear suspension is double A-arm with 227 mm of travel, ensuring comfort and grip on rough terrain. Shock absorption is achieved by spring and oil shock absorbers, while the hydraulic disc brake system guarantees safe stopping in all conditions.
The GOES TERROX 550L T3B is the perfect choice for those looking for a durable, high-performance and comfortable ATV for two, capable of handling both hard work and off-road adventures safely and in style.
Technical characteristics:
Engine
- Engine type: V-Twin, liquid-cooled, 4-stroke
- Displacement: 499 cc
- Maximum power: 39 HP
- Maximum torque: 44 Nm
- Power supply: BOSCH EFI
- Transmission and traction
- Transmission: CVT H/L/N/R/P
- Traction: 2WD / 4WD / 4WD with differential lock
- Dimensions and weight
- Length x Width x Height: 2410 x 1200 x 1467 mm
- Wheelbase: 1480 mm
- Ground clearance: 275 mm
- Minimum turning diameter: 5700 mm
- Dry weight: 365 kg
- Towing capacity: 700 kg
- Load capacity: 270 kg
- Fuel tank capacity: 17 L
Suspension
- Front: independent, double A-arm type spring, travel 200 mm
- Rear: independent, double A-arm, 227 mm travel
- Shock absorbers: oil-filled coil
Brakes
- Type: hydraulic discs front/rear
- Wheels and tires
- Wheels: steel, 12 inch
- Front tires: 25×8.00-12
- Rear tires: 25×10.00-12
- Colors: Pinehill Green, Steelcore Grey.
This vehicle is driven with a category B license.
The price shown is for the T3b homologation variant (city hall registration).
The power displayed is the constructive power declared by the Manufacturer and may differ from the homologable one, developed by the vehicle as a result of the factory power limitation, in order to comply with regulations in the field.
